Since the establishment of the company, EKSPRO-2000 realised over 600 designs as a prime contractor or subcontractor for part “Building Structures”. These designs have different scale and complexity.
EKSPRO-2000 prime business focus is the design of building structures of industrial and energy projects in (i.e. nuclear power plants, thermal power plants, gas power plants, water power plants, refineries, pulp and paper factories, chemical plants, metallurgical plants, pharmaceutical plants etc.).
In addition to the industrial designs, the company produces numerous designs of residential buildings, such as family and residential houses, administrative and office buildings, warehouses etc.

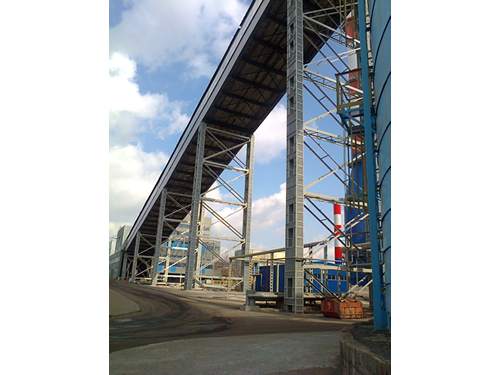

- TPP “Maritza East 3” – Support structure of the conveyors Т-12а, b and Т-19а, b
Site: TPP “Maritza East 3”
Sub-site: Conveyors Т-12а, b and Т-19а, b.
Main characteristics of the site:
Material: reinforced concrete columns; steel trusses and vertical bracings Height: 45 metres Length: 182 metres Width: 9 metres The conveyors Tp-12 and Tp-19 are designed to transfer coal to the Main Building. Both conveyors start from the coal-handling buildings /for Тр-12а, b – from Coal crusher - second stage; for Тр-19а, b – from the delivery chute №8/. They finish at row “G” of the Main building at elevation about +45.00 m. The slope is constant -13°. At about 15.60 m from row “G” of the Main building the conveyors become horizontal.
The Owner: ENEL Maritza East 3 PLC
Designed: year 2011
In operation since: year 2012Scope of Work: Assessment of the residual resource of the structure. Detailed design for strengthening.
