Since the establishment of the company, EKSPRO-2000 realised over 600 designs as a prime contractor or subcontractor for part “Building Structures”. These designs have different scale and complexity.

EKSPRO-2000 prime business focus is the design of building structures of industrial and energy projects in (i.e. nuclear power plants, thermal power plants, gas power plants, water power plants, refineries, pulp and paper factories, chemical plants, metallurgical plants, pharmaceutical plants etc.).

In addition to the industrial designs, the company produces numerous designs of residential buildings, such as family and residential houses, administrative and office buildings, warehouses etc.

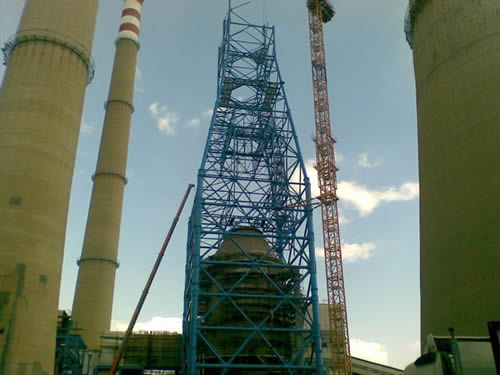

  • TPP “Maritza East 2” - Flue gas desulphurisation system, Units 1, 2, 3 and 4

Site: TPP “Maritza East 2” - Units 1, 2, 3 and 4

Sub-site: Flue gas desulphurisation system, Units 1, 2, 3 and 4. Support structure for GRP stacks.

Main characteristics of the site:

Material: GRP material (stack); steel structure (support structure)
Height: 135 metres (stack); 120 metres (support structure)
Diameter: 8.20 metres (stack)
Weight: 1100 tones (support structure)

Completion of two GRP stacks, supported by a steel structure with the following sizes: lower level: 26/27.3; upper level: 21.79/11.80 m;

Investor: TPP Maritza East 2 PLC
Main sub-contractor: VETRORESINA BALCAN Limited,
Montage Complect Engineering Limited

Designed: years 2006-2008
In operation since: year 2009

Scope of Work: Design of Steel support structure for GRP-stacks with a height of 135 metres.
