Since the establishment of the company, EKSPRO-2000 realised over 600 designs as a prime contractor or subcontractor for part “Building Structures”. These designs have different scale and complexity.

EKSPRO-2000 prime business focus is the design of building structures of industrial and energy projects in (i.e. nuclear power plants, thermal power plants, gas power plants, water power plants, refineries, pulp and paper factories, chemical plants, metallurgical plants, pharmaceutical plants etc.).

In addition to the industrial designs, the company produces numerous designs of residential buildings, such as family and residential houses, administrative and office buildings, warehouses etc.








  • "МONDI Stamboliyski” city of Stamboliyski - Support structure of Tank for black liquor T-11

Site: "МONDI Stamboliyski” city of Stamboliyski

Sub-site: Support structure of Tank for black liquor T-11

Main characteristics of the site:

Material: steel support structure,
reinforced concrete foundation
Tank diameter: 7.50 metres
Height of the support structure and the tank: 13.6 metres

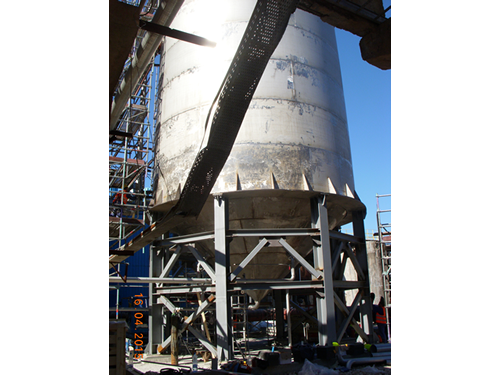

This project forms part of a wider-scale project for the general reconstruction and modernisation of the plant. A tank for black liquor with a volume of 420 m3 has been installed on the support structure. The tank is located 4300 mm above ground level. The vessel consists of an upper cylindrical and bottom cone section. The vessel is outside the scope of this project. It is supported by eight columns, symmetrically arranged in 45°.

Project Owner: МONDI Stamboliyski PLC

Designed: year 2015
In operation since: year 2015

Scope of Work: Detailed design of reinforced concrete foundation and steel support structure.
